36" Solar Flashing Signal Ahead Sign for Traffic Safety
36" Solar Flashing Signal Ahead Sign for Traffic Safety

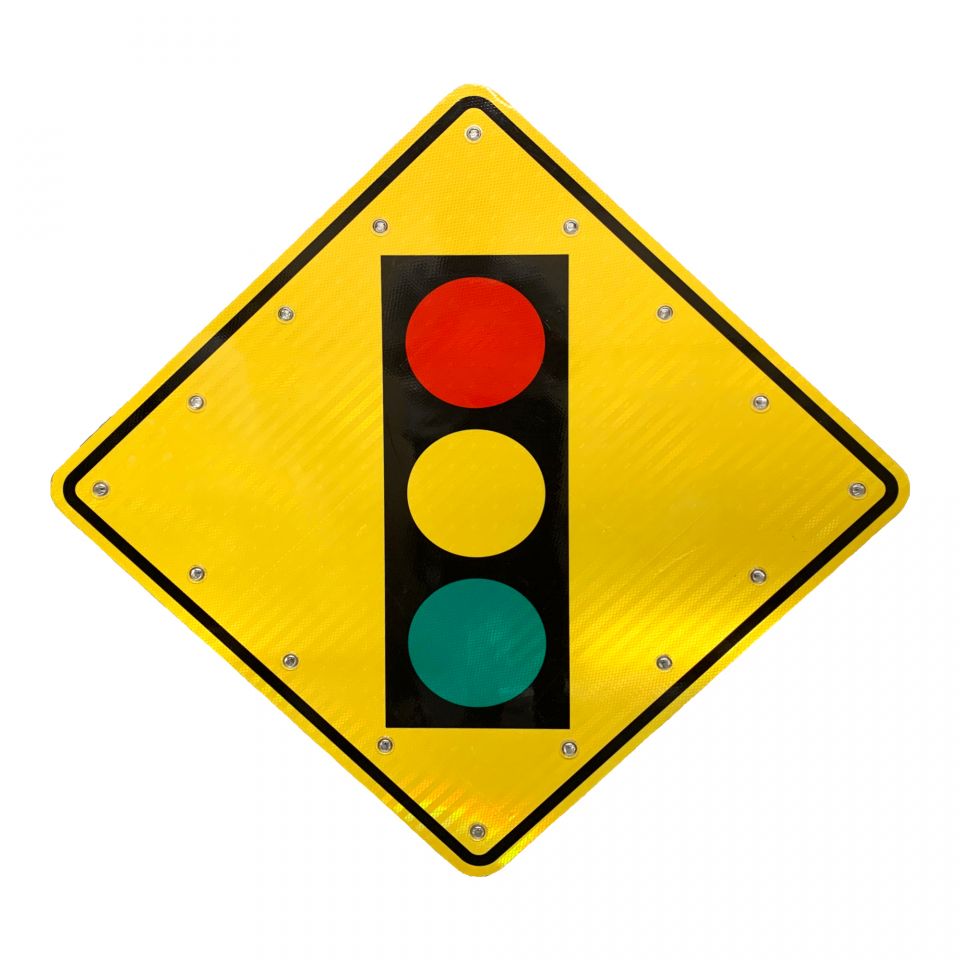

This sign’s bright flashing LED lights and reflective 3M material can be seen from over 2500ft and makes for a great addition for safety pertaining traffic right of way. Made with an aluminum alloy board and solar board to MUTCD (W3-3) specifications.Solar Powered Flashing LED Signal Ahead Sign can be used to warn drivers about the upcoming signals.
PRODUCT SPECIFICATIONS:
TYPE: Solar Powered Flashing LED Signal Ahead Sign
PRODUCT CODE: SGA-036
MUTCD CODE: W3-3
BATTERY POWER: Lithium Battery 7.4V/4400mAh
WORKING TIME: After one full charge, 5-7 consecutive days
WORKING MODE: 12 Hours Per day or 24 hours per day, flashing or constant optional
CHARGE TIME: 4-5H
DIMENSIONS: 36-inch Diamond (36”X36”)
LED COLOR: Yellow
SIGN COLOR: Engineer grade yellow
o Option: Fluorescent Yellow/ Green (only in diamond grade)
BATTERY LIFE SPAN: 3-5 Years
WORKING TEMPERATURE: -20 to 150 °F
WARRANTY: 3 Year Full Warranty
*STANDARD HARDWARE: FITS 3" to 4" DIAMETER POSTS*

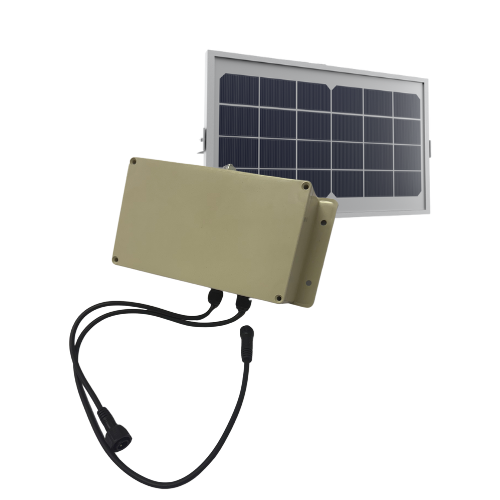

JUNCTION BOX (BATTERY HOUSING)
· STANDARD:5W /12V Solar Panel, 7.4V / 4400mAH Battery
· UPGRADED: 8W / 12V Solar Panel, 7.4V / 6600mAH Battery (Longer Battery Life)
MUTCD GUIDELINES:
The SGA-036 adheres to the MUTCD Standards found within MUTCD Guidelines Section 2A.07 for Retroreflective and Illumination
o Illumination of a sign by Light emitting diodes (LEDs)
o Sign Element to be Illuminated: (1) Symbol or word message (2) Portions of the Sign border
o LED’s are placed within 1 border unit of border and within words
o LED’s are red in color
o LED’s are within ¼” in width
o LED’s flashing at a rate of 50 times per minute
o Background of sign is standard 3M reflective engineering grade material
