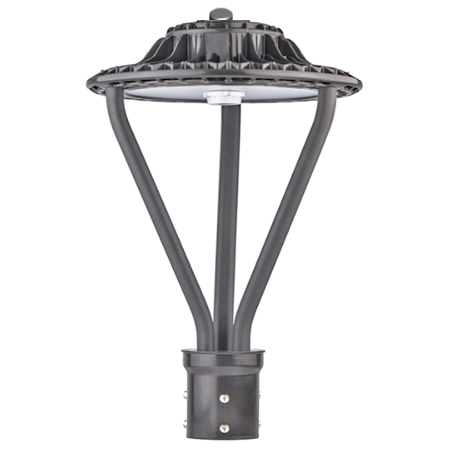

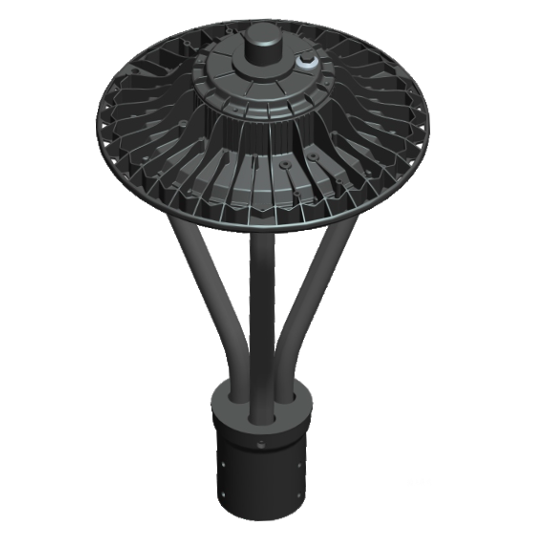

Adjustable Wattage AC Powered Pole Top Area Light with Adjustable Kelvin

This 3-in-1 universal light is perfect for areas that need adjustable brightness and color temperature. With various settings to choose from, this light can be perfect in any area that it is placed, such as parking lots, parks and pathways, retail settings and more! This light delivers lighting at half the energy compared traditional incandescent light products. It is simple to install, has a great design and is highly efficient.

PRODUCT SPECIFICATIONS:

TYPE: Adjustable Wattage AC Powered Pole Top Area Light with Adjustable Kelvin

PRODUCT CODE: CSTV075150-UK-UB-PC-M

COLOR TEMPERATURE: Adjustable 3000k / 4100K / 5000K CCT (Kelvin)

WATTAGE: 75W / 100W / 150W Adjustable All-in-one Wattage

LUMEN OUTPUT: 75W: 9,750 lumens / 100W: 13,000 lumens / 150W: 19,500 lumens

VOLTAGE: 110/277V

LIFESPAN: 50,000 hours at 77° F

BEAM ANGLE: 120°

HOUSING: Shiny Bronze Fixture

COVER: Frosted cover

BASE MOUNT: 2.4" to 3" (Universal)

IP: 67

WARRANTY: 3 Years

MODES: To adjust the power and color temperature, the controller cover on the top of the light must be removed to access the controls

(See documents for further instruction).

ADJUSTING POWER:

1.     Light comes set at 75W

2.     In order to adjust to 100W: Pull A1 to ON, A2 to OFF

3.     In order to adjust to 150W: Pull A1 to OFF, A2 to ON

ADJUSTING COLOR TEMPERATURE:

1.     Gears for adjusting - B3=3000K, B2=4000K, B1=5000K

2.     The factory default is set to 5000K (B1)

3.     When adjusting color temperature, pull the lever to the corresponding position
