15' Tall x 5.0" OD x 0.188" Thick, Square Straight Aluminum, Anchor Base Light Pole
Bronze
$0.00
Sale price
$0.00
Regular price
Skip to product information
Product Specifications:

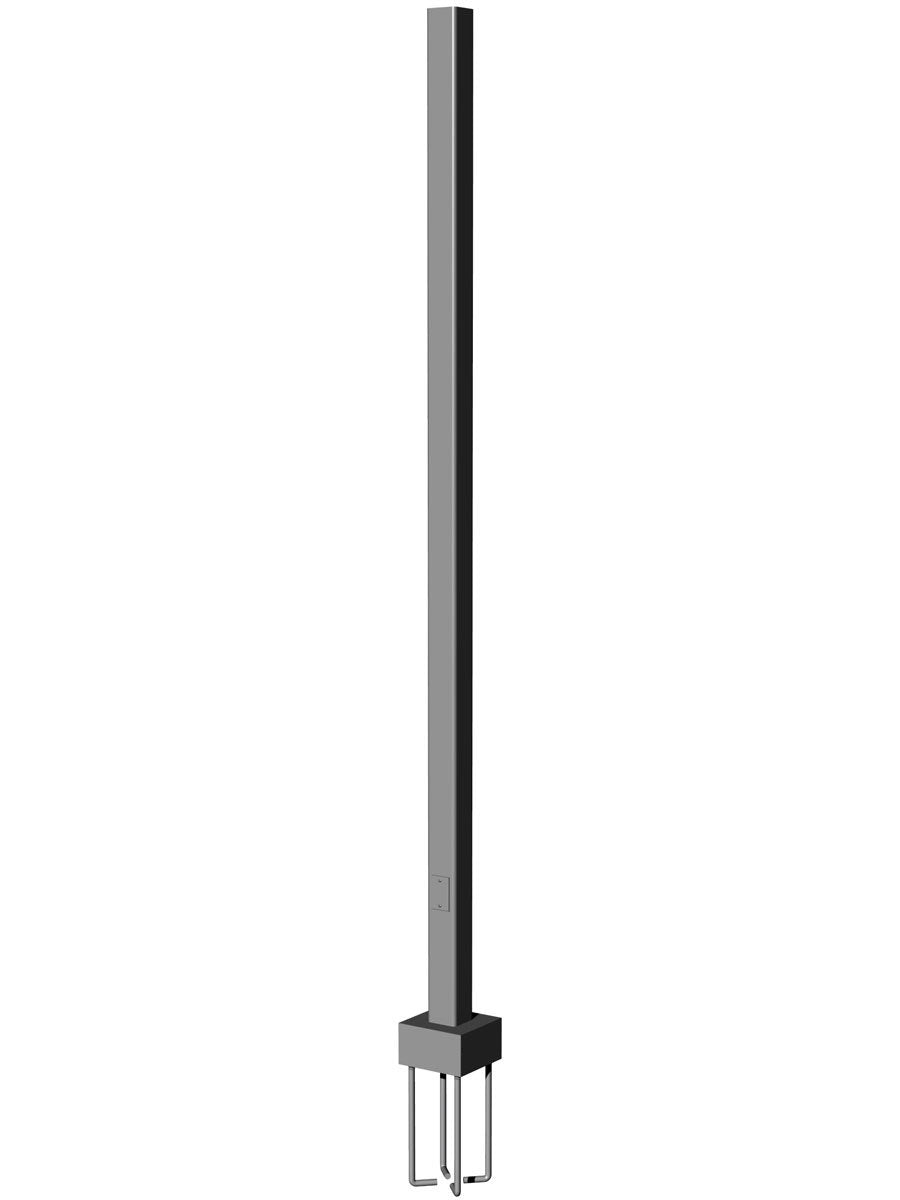

15' Tall x 5.0" OD x 0.188" Thick, Square Straight Aluminum, Anchor Base Light Pole
$0.00
Sale price
$0.00
Regular price
PRODUCT TYPE: 15' Tall x 5.0" OD x 0.188" Thick, Square Straight Aluminum, Anchor Base Light Pole
PRODUCT CODE: LPBM-1505-188-SQ-AL
LIGHT FIXTURE MOUNTING: 2 3/8 Tennon Top
COLOR OPTIONS: White, Bronze, Black
POLE THICKNESS: 0.188
POLE HEIGHT: 15 Ft.
HAND HOLE: 2" x 4" oval hand hole and grounding provision are provided (dimensions are nominal). Cover and cover attachment hardware also included.

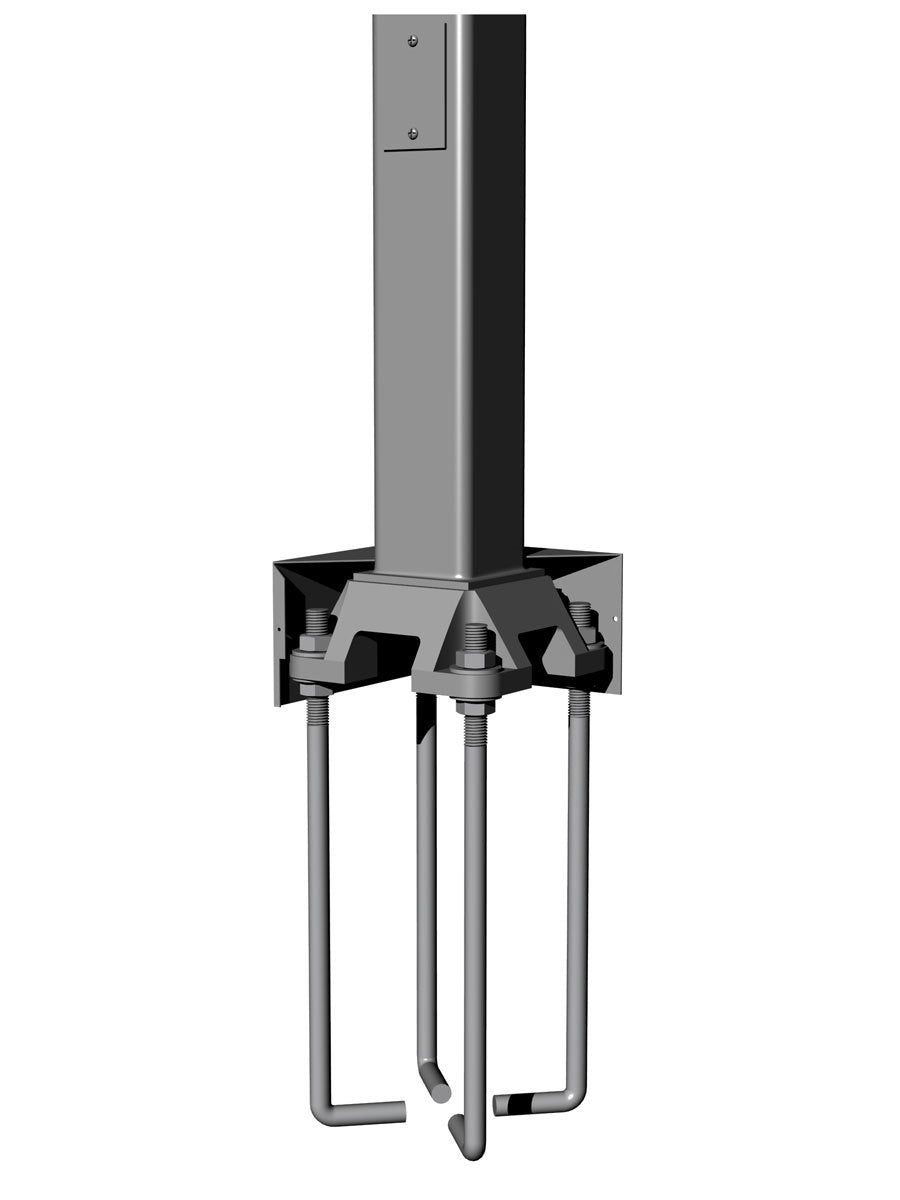

ANCHOR BASE & COVER: The anchor base is cast from 356 alloy aluminum and supplied with an aluminum two-piece base cover. The completed pole assembly is heat-treated to a T6 temper. Optional decorative base covers available as special order.
ANCHOR BOLTS: Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers. Bolts have an "L" bend on one end and are galvanized a minimum of 12" on the threaded end.
HARDWARE: All structural fasteners are galvanized high strength carbon steel. All non-structural fasteners are galvanized or zinc-plated carbon steel or stainless steel.
MOUNTING HEIGHT: 15 Ft.
WEIGHT: 78 lbs
ALL POLES ARE FINAL SALE
